MILLING CUTTER
FLAT-END MILLING CUTTER

Flat-end Milling Cutters are designed with a straight cutting edge and flat tip, ideal for machining flat surfaces, sharp edges, and precise slots. Unlike ball nose end mills, they produce exact 90-degree corners, making them perfect for pocketing, slotting, and contouring tasks. Their flat geometry enhances material removal and delivers high precision in both roughing and finishing. Suitable for a wide range of materials like steel and aluminum, these cutters offer excellent tool life and dimensional accuracy but are less effective for curved surface machining.

  VIEW MORE FLAT-END MILLING CUTTERS

2 Flutes End Mills:
P/N d
Diameter		l
Flute Length		 L
Overall Length		 D
Shank Diameter
MF-D1*3*50*4-2F1.03504
MF-D1.5*4.5*50*4-2F1.54.5504
MF-D2*6*50*4-2F2.06504
MF-D2.5*7*50*4-2F2.57504
MF-D3*8*50*4-2F3.08504
MF-D4*11*50*4-2F4.011504
MF-D5*13*50*6-2F5.013506
MF-D6*15*50*6-2F6.015506
MF-D7*18*60*8-2F7.018608
MF-D8*20*60*8-2F8.020608
MF-D9*23*75*10-2F9.0237510
MF-D10*25*75*10-2F10.0257510
MF-D11*28*75*12-2F11.0287512
MF-D12*30*75*12-2F12.0307512
MF-D16*40*100*16-2F16.04010016
MF-D20*40*100*20-2F20.04010020


3 Flutes End Mills:
P/N d
Diameter		l
Flute Length		 L
Overall Length		 D
Shank Diameter
MFA-D3*12*75*6-3F3.012756
MFA-D4*16*75*6-3F4.016756
MFA-D5*20*75*6-3F5.020756
MFA-D6*25*75*6-3F6.025756
MFA-D8*30*75*8-3F8.030758

MFB-D3*15*100*6-3F3.0151006
MFB-D4*20*100*6-3F4.0201006
MFB-D5*25*100*6-3F5.0251006
MFB-D6*30*100*6-3F6.0301006
MFB-D8*35*100*8-3F8.0351008
MFB-D10*40*100*10-3F10.04010010
MFB-D12*45*100*12-3F12.04510012

MFC-D8*40*150*8-3F8.0401508
MFC-D10*50*150*10-3F10.05015010
MFC-D12*50*150*12-3F12.05015012
MFC-D16*70*150*16-3F16.07015016
MFC-D20*80*150*20-3F20.08015020
BALL NOSE END MILLS

Flat-end Milling Cutters are designed with a straight cutting edge and flat tip, ideal for machining flat surfaces, sharp edges, and precise slots. Unlike ball nose end mills, they produce exact 90-degree corners, making them perfect for pocketing, slotting, and contouring tasks. Their flat geometry enhances material removal and delivers high precision in both roughing and finishing. Suitable for a wide range of materials like steel and aluminum, these cutters offer excellent tool life and dimensional accuracy but are less effective for curved surface machining.

  VIEW MORE BALL NOSE END MILLS

2 Flutes Ball Nose Milling Cutting:

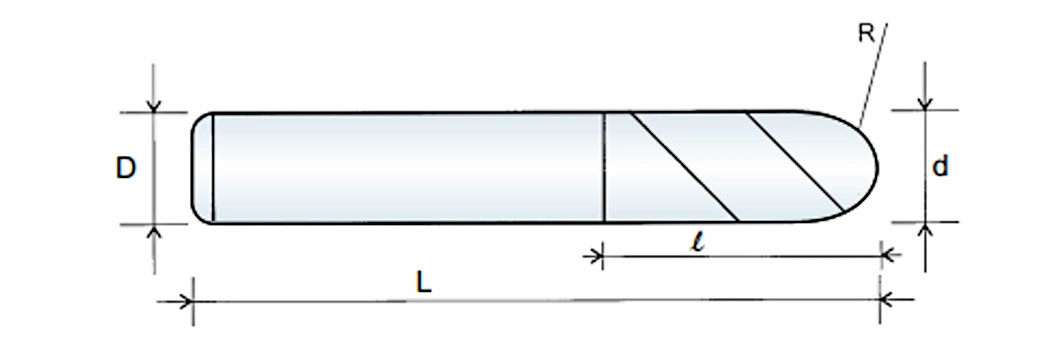

P/N 1/2 d
Edge Radius		l
Flute Length		 L
Overall Length		 D
Shank Diameter
MB-R0.5*2*50*4-2F0.502504
MB-R0.75*3*50*4-2F0.753504
MB-R1.0*4*50*4-2F1.004504
MB-R1.25*5*50*4-2F1.255504
MB-R1.5*6*50*4-2F1.506504
MB-R1.75*7*50*4-2F1.757504
MB-R2.0*8*50*4-2F2.008504
MB-R2.25*9*50*6-2F2.259506
MB-R2.5*10*50*6-2F2.5010506
MB-R2.75*11*50*6-2F2.7511506
MB-R3.0*12*50*6-2F3.0012506
MB-R3.25*13*60*8-2F3.2513608
MB-R3.5*14*60*8-2F3.5014608
MB-R3.75*15*60*8-2F3.7515608
MB-R4.0*16*60*8-2F4.0016608
MB-R4.5*18*75*10-2F4.50187510
MB-R5.0*20*75*10-2F5.00207510
MB-R6.0*24*75*12-2F6.00247512
MB-R8.0*30*100*16-2F8.003010016
MB-R10*30*100*20-2F10.03010020
MB-R12.5*30*100*25-2F12.53010025


4 Flutes Ball Nose Milling Cutting:
P/N 1/2 d
Edge Radius		l
Flute Length		 L
Overall Length		 D
Shank Diameter
MB-R0.5*2*50*4-4F0.502504
MB-R0.75*3*50*4-4F0.753504
MB-R1.0*4*50*4-4F1.004504
MB-R1.25*5*50*4-4F1.255504
MB-R1.5*6*50*4-4F1.506504
MB-R1.75*7*50*4-4F1.757504
MB-R2.0*8*50*4-4F2.008504
MB-R2.25*9*50*6-4F2.259506
MB-R2.5*10*50*6-4F2.5010506
MB-R2.75*11*50*6-4F2.7511506
MB-R3.0*12*50*6-4F3.0012506
MB-R3.25*13*60*8-4F3.2513608
MB-R3.5*14*60*8-4F3.5014608
MB-R3.75*15*60*8-4F3.7515608
MB-R4.0*16*60*8-4F4.0016608
MB-R4.5*18*75*10-4F4.50187510
MB-R5.0*20*75*10-4F5.00207510
MB-R6.0*24*75*12-4F6.00247512
MB-R8.0*30*100*16-4F8.003010016
MB-R10*30*100*20-4F10.03010020
MB-R12.5*30*100*25-4F12.53010025
ODM/OEM SERVICE FOR MILLING CUTTERS

Welcome to our ODM/OEM service for milling cutter. We specialize in designing and manufacturing custom milling cutters tailored to your specific needs, ensuring optimal performance and precision. Our experienced team works closely with you to provide bespoke solutions for any threading or machining requirements. Whether you need Flat-end Milling Cutters, Ball Nose End Mills, or other types, in standard or non-standard sizes, materials, and coatings, we deliver high-quality tools to meet your project specifications. Partner with us for reliable, cost-effective, and innovative custom milling cutter solutions.

SEND YOUR INQUIRY TO US

Modal title

Contact Form
clear send
FAQ

  • How can I get a sample? And what’s your sample policy?

    If you just need similar sample for quality evaluation, we can send our catalog or brochure to you directly.
    If you need a sample according to your actual sample, Please send your actual sample to us, We can make one and send to you.
    If you need sample of your own design, Please provide the infomations with below details included:

    1> Material
    2> Dimension
    3> Parameters
    4> Technics / special requiremnet.

    With above information, we will advise quotation for your approval. Upon receipt of your confirmation, we would process sample immediately. Normal products takes around 7 days, others 10~15 days if more technics is requested. Then we send actual sample out if scanned copy was approved ok.
    According to our sample policy, the freight should be afforded by customers. So a collect account is needed before that if you have any cooperated courier.

  • How to place an order?

    (1) New orders can be placed through e-mail, couriers, or fax with clear information of quantity, size, colors, and other specs, such as material, Dimension, Parameters, Technics / special requiremnet and so on, an existing samples would be best.

    (2) Repeat orders may be placed online, We keep a actual sample and detailed data of each item from first order. We give each regular customer a sole user name and password to login in our online order system. There you can place order and check if the order was received ok very conveniently.

  • What are the types of End Milling Cutter?

    Flat-End Mill:
    Description: Features a flat cutting face.
    Use: Producing flat surfaces, slots, and contours.
    Ball Nose End Mill:
    Description: Has a hemispherical end.
    Use: Creating 3D shapes, contours, and rounded grooves.
    Corner Radius End Mill:
    Description: Combines features of flat-end and ball nose end mills with a rounded edge.
    Use: Reducing tool wear and machining fillets.
